Durco Filtration
Technologies Selection Guide |
|
| |
|
|
|
| |
 |
|
| |

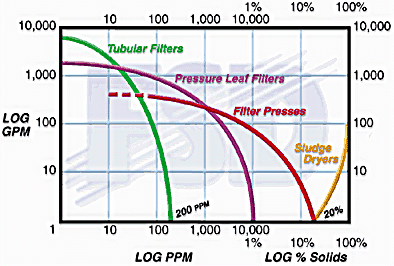

The chart provided above
provides some useful guidelines when defining the
optimum filtering technology for Your industrial
process. Compare Your required flow rate and the
solids content of Your processes stream to the
curves for different filtration and drying equipment
provided on the log-scale chart. |
|
| |
|
|
|
| |
|
|
|
| |
 Durco
Tubular Filtration |
|
| |
|
|
|
| |

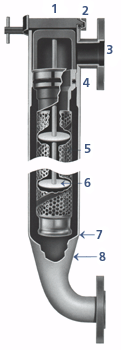

Durco Tubular Filters
Are Ideal For Continuous Filtration Of Process
Streams With Low Solids Loading (<200 ppm) And High
Flow Rates (To 5,000 gpm). Available with Manual or
Automatic Backwash Options |
|
| |
|
|
|
| |
 |
Durco Tubular Filters are designed
for continuous operation with high flow
rates in applications with low solids
loadings. There are 4 tubular filter
models with different materials of
construction for different applications:
- TE Series Tubular Filters
- Full Stainless Steel construction
for continuous filtering of particle
sizes down to 1 micron
- PC Series Tubular Filters
- Full Stainless Steel construction
for continuous filtering with
submicron particle retention to 0.1
micron
- PTE Lined Tubular Filters
- Carbon Steel construction. All
wetted parts are fluorocarbon lined
for outstanding resistance to
chemical attack. Filtration to 1
micron
- PVC Tubular Filters -
Full PVC construction for continuous
filtering of water or mildly
aggressive fluids down to 1 micron
|
| All 4 Durco Tubular
Filter models are available with manual
or automatic control and a wide variety
of filter media to suit Your process. |
|
|
| |
|
|
|
| |
Durco
Pressure Leaf Filtration |
|
| |
|
|
|
| |
Horizontal Pressure Leaf
Filters & Vertical Pressure Leaf Filters With A
Broad Range Of Pressure Leaves For Batch Operations
With High Flow Rate Capability. |
|
| |
|
|
|
| |
|
Durco Pressure Leaf
Filters are available in either wet cake
(sluicing) or dry cake (vibrating)
discharge models, and are designed for
high flow rates and batch operation
typically in applications with 2% solids
loadings. Higher solids loadings (~6%)
are possible depending on the specific
application.
Durco Pressure Leaf Filters are
available in 2 configurations with
respect to their tank orientation: |
 |
Horizontal Pressure Leaf Filters
- utilize a horizontal tank, vertical
leaf configuration and maximize the
filtration area |
|
 |
Vertical Pressure Leaf Filters
- utilize a vertical tank, vertical leaf
configuration and minimize the footprint |
| Steam jackets are
available for both configurations. |
|
|
| |
|
|
|
| |
Durco
Filter Presses |
|
| |
|
|
|
| |
Filter Press Systems
Recover Solids And/Or Liquids From Slurry. The Durco
Range Of Sidebar Filter Presses & Overhead Filter
Presses Are Ideal For 'Dewatering' Of Aqueous Or
Other Liquid Slurry Containing 3-30 wt%
Particulates. |
|
| |
 |
|
| |
|
Durco Filter Press units
are ideal for batch operations with
liquids containing high solids
concentrations or slurries (3%-30%
solids by weight). Durco offers 2 Filter
Press lines: |
 |
Durco EP Sidebar
Filter Press - The Durco EP Sidebar
Filter Press design provides economical
dewatering of a wide variety of
industrial and municipal slurries and
sludges. |
 |
Durco QP Overhead
Filter Press - The Durco QP Overhead
Filter Press 4-bar design offers
ultra-reliable process stream dewatering
in the most demanding conditions. |
|
|
| |
|
|
| |
Durco
Sludge Dryers |
|
| |
|
|
|
| |
The Enviro-Dri Sludge
Dryer is ideal for any company that is currently
generating hazardous waste that must be disposed of
in a hazardous landfill - Waste disposal costs
reduced up to 75% |
|
| |
|
|
|
| |
| Durco Enviro-Dri Sludge
Dryers are designed for supplemental
dewatering of sludge cake (>25 wt%
solids) up to 90%, greatly reducing
waste volume and weight. |
|
 |
The Enviro-Dri
Sludge Dryer is typically used in
conjunction with a filter press where
the filter press discharges its cake
directly into the dryer. This integrated
design provides a small footprint.
Low-pressure steam (25 psi) contained
in a steam jacket provides heating
energy while the sludge cake is mixed
within the dryer.
Manual or hydraulic operation is
available for inlet and outlet doors. |
| The Durco Enviro-Dri
Sludge Dryer is designed for heavy-duty,
every day batch waste disposal.
Specific Process Applications
Include:
- Metal Hydroxides
- Inorganic sludge cakes
- Organic sludge cakes
- Solvent Removal
|
|
|
| |
|
|
|
